华芯半导体风囊泵在化学研磨设备中的应用

化学机械研磨（CMP）是芯片制造实现纳米级全局平坦化的关键工艺。其中，化学研磨设备精准地将含有微细磨料的研磨液（Slurry）输送到抛光垫上，其输送系统的性能直接决定了研磨速率、均匀性以及晶圆表面的缺陷水平。华芯化学风囊泵，凭借其专为苛刻化学品设计的卓越特性，成为化学研磨设备中输送研磨液的理想选择，为高良率CMP工艺提供稳定、纯净的精密动力。

一、 直面挑战：化学研磨设备对输送泵的严苛要求

在化学研磨设备中，输送泵面临的工况极具挑战性：

1. 强磨损性： 研磨液中的固态磨料颗粒会对泵体内腔造成持续磨损，影响寿命并可能产生污染颗粒。

2. 复杂化学腐蚀： 研磨液通常为酸性或碱性，对金属部件具有腐蚀风险。

3. 极高的纯净度要求： 泵体必须杜绝金属离子污染，任何微量析出都可能破坏研磨液的化学平衡，导致晶圆表面产生缺陷。

4. 输送稳定性： 稳定的流量与压力是保证研磨均匀性的前提。

二、 华芯解决方案：风囊泵在化学研磨设备中的核心应用与优势

针对以上挑战，华芯化学风囊泵从材料到结构提供了全方位的解决方案：

应用核心：作为研磨液（Slurry）的主供给泵

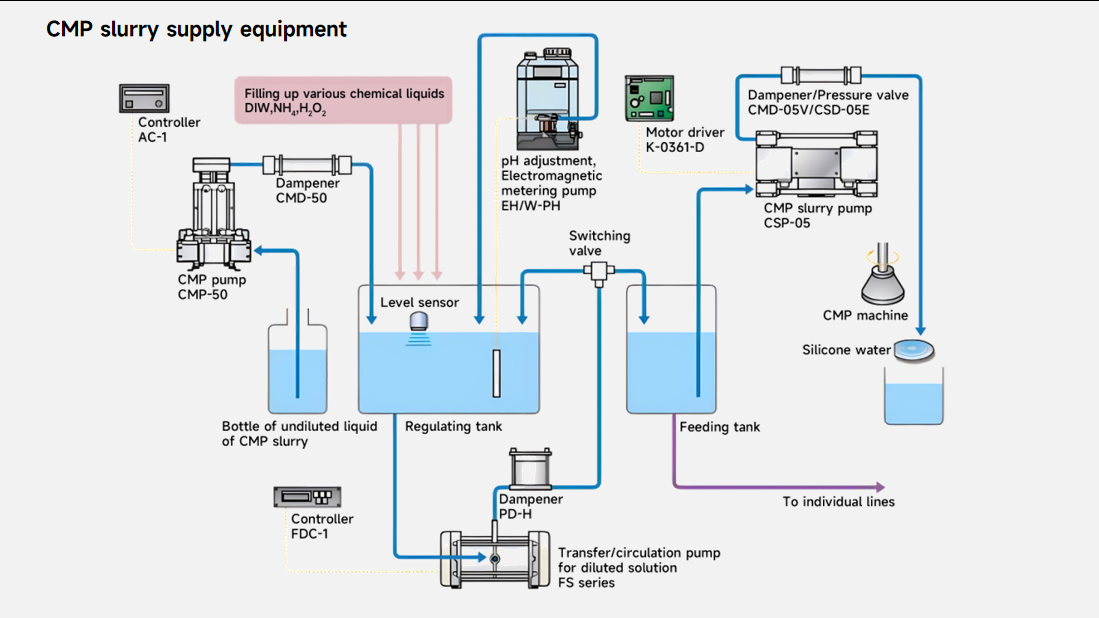

华芯风囊泵集成于化学研磨设备的供液系统中，负责将研磨液从原液桶或缓冲罐中，持续、稳定地泵送至抛光头的分配器或抛光垫上。

其核心优势体现在：

• 优势一：超凡的抗磨损与耐腐蚀特性

• 全氟流道，抵御双重侵蚀： 与研磨液接触的泵体部分全部由超纯氟材料制成。该材料不仅具备极强的耐化学腐蚀特性，能从容应对酸/碱基研磨液，其本身的高硬度与光滑特性更能有效抵抗磨料颗粒的冲刷磨损，从而实现更长的使用寿命和更低的故障率。

• 优势二：极致纯净，守护研磨液化学稳定性

• 超低析出，杜绝污染： 华芯风囊泵的金属离子与颗粒等污染物析出量非常低。这一特性对于化学研磨至关重要，它确保了研磨液的原始化学配方不被输送环节破坏，避免了因金属离子污染导致的晶圆表面腐蚀、点缺陷或有机残留，直接提升晶圆的表面质量与最终良率。

• 优势三：运行稳定，保障工艺均匀性

• 风囊泵的工作原理提供了平稳、脉冲小的输送特性。这种稳定的流态确保了研磨液能够以恒定且均匀的流量覆盖整个抛光垫，从而为实现一致的研磨速率和卓越的晶圆内平坦度（WIWNU）奠定了坚实基础。

• 优势四：坚固结构，满足设备集成要求

• 泵壳采用铝合金材质并经过多层氧材料涂覆，在提供足够结构强度以集成于设备内部的同时，增强了对外部化学溅漏环境的防护能力，确保了整泵在复杂工况下的长期可靠性。

三、 为客户创造的核心价值

在化学研磨设备中采用华芯化学风囊泵，意味着：

• 提升CMP工艺良率： 通过杜绝输送过程中的污染，减少晶圆表面缺陷。

• 降低综合成本： 超长的耐磨寿命减少了备件更换频率和维护停机时间，降低了总拥有成本（TCO）。

• 保障生产连续性： 高可靠性和一致性确保了化学研磨设备能够7x24小时稳定运行，满足现代化晶圆厂苛刻的生产节拍要求。

• 实现工艺一致性： 在无尘车间生产并通过ISO认证，保证了每一台泵的性能一致，使得跨多台设备的CMP工艺结果稳定可靠。

结论：
在追求极致平坦化与无缺陷的CMP工艺中，每一个细节都至关重要。华芯化学风囊泵，以其针对化学研磨工况的专属设计，成功解决了耐磨、耐腐与超纯输送的核心难题。它不仅是研磨液的输送单元，更是保障CMP工艺成功、提升芯片性能与良率的战略性组件。

选择华芯风囊泵，为您的化学研磨设备注入一颗强劲而纯净的“心脏”，共同研磨出芯片未来的无限可能。

　　Chemical Mechanical Polishing (CMP) is a critical process for achieving nanometre-level global planarisation in semiconductor manufacturing. Within this process, chemical polishing equipment precisely delivers slurry containing fine abrasive particles to the polishing pad. The performance of its delivery system directly determines polishing rate, uniformity, and the defect level on the wafer surface. Huaxin chemical diaphragm pumps, with their exceptional properties specifically engineered for harsh chemicals, represent the ideal choice for slurry delivery within CMP equipment. They provide stable, pure, and precise power for high-yield CMP processes.

　　I. Confronting Challenges: Demanding Requirements for Pumps in Chemical Polishing Equipment

　　Within chemical polishing equipment, pumps face exceptionally challenging operating conditions:

　　High Abrasiveness: Solid abrasive particles in the slurry cause continuous wear on the pump's internal cavity, impacting service life and potentially generating contaminant particles.

　　Complex Chemical Corrosion: Slurries are typically acidic or alkaline, posing corrosion risks to metal components.

　　Extreme Purity Requirements: Pumps must prevent metallic ion contamination, as even trace deposits can disrupt the slurry's chemical equilibrium, causing wafer surface defects.

　　Delivery Stability: Consistent flow and pressure are essential for ensuring uniform polishing.

　　II. Huaxin Solution: Core Applications and Advantages of Diaphragm Pumps in Chemical Polishing Equipment

　　Addressing these challenges, Huaxin's chemical diaphragm pumps deliver comprehensive solutions from materials to structure:

　　Application Core: Primary Feed Pump for Slurry

　　Integrated into chemical polishing equipment's fluid delivery systems, Huaxin diaphragm pumps continuously and stably transfer slurry from source tanks or buffer vessels to the distributor or polishing pad at the polishing head.

　　Its core advantages are manifested in:

　　Advantage One: Exceptional Wear Resistance and Corrosion Resistance

　　Fully fluorinated flow paths withstand dual erosion: All pump components in contact with the slurry are constructed from ultra-pure fluorinated materials. This material not only exhibits exceptional chemical corrosion resistance, effortlessly handling acidic/alkaline polishing solutions, but its inherent high hardness and smooth surface also effectively resist abrasive particle erosion. This results in extended service life and reduced failure rates.

　　Advantage Two: Ultimate Purity, Safeguarding Polishing Solution Chemical Stability

　　Ultra-low leaching, eliminating contamination: Huaxin diaphragm pumps exhibit minimal leaching of metal ions and particulate contaminants. This characteristic is crucial for chemical polishing, ensuring the original chemical formulation of the slurry remains intact during transfer. It prevents wafer surface corrosion, point defects, or organic residues caused by metal ion contamination, directly enhancing wafer surface quality and final yield.

　　Advantage Three: Operational Stability, Ensuring Process Uniformity

　　The diaphragm pump's operating principle delivers smooth, low-pulse delivery characteristics. This stable flow ensures the polishing solution covers the entire polishing pad at a constant and uniform flow rate, laying a solid foundation for achieving consistent polishing rates and exceptional wafer-in-wafer uniformity (WIWNU).

　　Advantage Four: Robust Construction for Equipment Integration

　　The pump housing, crafted from aluminium alloy with multi-layer oxygen-resistant coating, delivers sufficient structural integrity for internal equipment integration while enhancing protection against external chemical splashes. This ensures long-term reliability under demanding operating conditions.

　　III. Core Value Creation for Customers

　　Integrating Huaxin Chemical's air-cushion pump into chemical polishing equipment delivers:

　　Enhanced CMP Process Yield: Eliminates contamination during transfer, reducing wafer surface defects.

　　Reduced Total Cost of Ownership: Exceptional wear resistance minimises spare part replacement frequency and maintenance downtime, lowering overall TCO.

　　Guaranteed Production Continuity: High reliability and consistency ensure 24/7 stable operation of chemical polishing equipment, meeting the demanding production rhythms of modern wafer fabs.

　　Achieving process consistency: Manufactured in cleanrooms and ISO-certified, each pump delivers uniform performance, enabling stable and reliable CMP results across multiple equipment units.

　　Conclusion:

　　In the pursuit of ultimate planarisation and defect-free CMP processes, every detail is critical. Huaxin Chemical Air-Bladder Pumps, with their bespoke design for chemical polishing conditions, successfully resolve the core challenges of wear resistance, corrosion resistance, and ultra-pure fluid conveyance. They serve not merely as fluid delivery units, but as strategic components ensuring CMP process success while enhancing chip performance and yield rates.

　　Select Huaxin diaphragm pumps to equip your chemical polishing equipment with a robust and pristine ‘heart’, jointly polishing the boundless potential of the semiconductor future.
