光刻胶泵-光刻胶涂覆用风囊泵哪个好

在半导体光刻的宏大篇章中，光刻胶涂覆是书写一切精细图案的第一笔。这一环节要求在绝对洁净的环境下，将粘度特定、光敏性极强的光刻胶，以纳米级均匀度涂覆于晶圆表面。任何微小的颗粒、金属离子污染或流量波动，都可能导致图形缺陷，直接关乎芯片的成败。华芯光刻胶泵，正是为胜任这一要求而生，成为光刻胶供应系统中确保终极纯净与稳定性的“精密画笔”。

一、 核心挑战：光刻胶涂覆对输送系统的严苛要求

1. 极致纯净，杜绝污染： 光刻胶对金属离子（如Na⁺、K⁺、Ca²⁺）污染极其敏感，微量的析出便会改变其光化学性能，导致显影后产生缺陷。

2. 卓越的化学兼容性： 需兼容各类正性、负性光刻胶及其稀释溶剂（如PGMEA、EL等），避免泵体材料被腐蚀或溶胀。

3. 稳定的输送性能： 流量的脉动和波动会直接导致涂覆厚度不均（Thickness Uniformity不达标），影响光刻分辨率。

4. 应对高粘度流体： 部分光刻胶具有较高粘度，对泵的输送能力提出了挑战。

二、 华芯解决方案：风囊泵在光刻胶涂覆系统中的核心角色

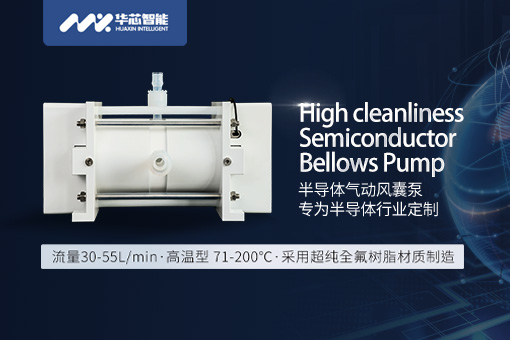

华芯光刻胶风囊泵泵主要集成于光刻机的光刻胶供给系统中，负责将光刻胶从保护性容器中，安全、精确地输送到涂覆机的喷嘴上或晶圆中心。

其核心应用优势体现在：

• 优势一：超纯材质，从源头守护光刻胶完整性

• 全氟流道，零污染输送： 泵体与光刻胶接触部分全部由超纯氟材料制成。这种材料具有极低的金属离子与颗粒析出特性，如同为光刻胶构筑了一条“惰性高速公路”，确保其从储罐到喷嘴的整个旅程中，化学成分不被输送环节污染，从根本上杜绝了因金属污染引起的显影缺陷。

• 优势二：全面耐化学性，无畏各类光刻胶

• 超纯氟材料具备广谱的卓越耐化学腐蚀特性，能够稳定输送从KrF、ArF到EUV等先进制程所需的各类光刻胶及溶剂，保证泵体长期运行不被腐蚀、不发生降解，确保了输送长期的一致性。

• 优势三：平稳输送，保障纳米级涂覆均匀性

• 华芯光刻胶泵的设计能提供极其平稳、无脉冲的流体输出。这种稳定的流量是实现卓越的晶圆内涂覆均匀性（WIWNU） 和批间重复性（Lot-to-Lot Consistency） 的先决条件。它为旋涂工艺提供了稳定的流体基础，助力光刻机在晶圆上“描绘”出均匀无误的光刻胶薄膜。

• 优势四：坚固设计，满足设备集成与长期可靠

• 采用铝合金壳体并辅以多层氧材料涂覆，既为精密的内氟泵体提供了坚固的机械保护，也增强了其在设备内部抵抗化学气氛侵蚀的能力，确保了在高速运转的晶圆厂中长久、免维护的稳定运行。

三、 为客户创造的核心价值

在光刻这一核心制程中采用华芯光刻胶风囊泵，意味着：

• 提升图形良率： 通过消除输送污染源，显著减少显影后的微桥、缺口等缺陷，直接提升芯片的成品率。

• 保障工艺一致性： 稳定的流量输出确保了每一片晶圆、每一批次产品的光刻胶厚度都高度一致，为后续曝光工艺打下坚实基础。

• 降低总拥有成本： 超长的使用寿命和高可靠性减少了非计划停机和备件更换成本，保障了光刻机这一昂贵资产的生产效率。

建立信任与合规： 千级无尘车间生产和ISO认证，确保了每一台交付的泵都符合最高标准，为您的尖端制程提供品质背书。
光刻是芯片制造的灵魂，而光刻胶涂覆则是灵魂的窗口。华芯光刻胶风囊泵，以其对“纯净”与“稳定”的极致追求，精准地解决了光刻胶输送中的核心痛点。它不仅是光刻设备中的一个部件，更是保障光刻工艺成功、决定芯片图形精准度的关键赋能者。

　　In the grand narrative of semiconductor lithography, photoresist coating marks the first stroke in inscribing every intricate pattern. This critical step demands the application of photoresist—a substance of precise viscosity and extreme photosensitivity—with nanometre-level uniformity onto the wafer surface within an absolutely sterile environment. Any minute particle, metallic ion contamination, or flow fluctuation may induce pattern defects, directly determining the success or failure of the chip. Huaxin Photoresist Pumps are engineered precisely to meet these extreme demands, serving as the ‘precision brush’ within photoresist supply systems that guarantees ultimate purity and stability.

　　I. Core Challenge: The Rigorous Demands of Photoresist Coating on Delivery Systems

　　Ultimate Purity, Zero Contamination: Photoresist exhibits extreme sensitivity to metal ion contamination (e.g., Na⁺, K⁺, Ca²⁺). Even trace precipitation alters its photochemical properties, causing defects post-development.

　　Exceptional Chemical Compatibility: Must tolerate diverse positive and negative photoresists alongside their diluents (e.g., PGMEA, EL), preventing corrosion or swelling of pump materials.

　　Stable Delivery Performance: Flow pulsations and fluctuations directly cause uneven coating thickness (failing to meet Thickness Uniformity standards), impacting lithographic resolution.

　　Handling High-Viscosity Fluids: Certain photoresists exhibit high viscosity, posing challenges to the pump's delivery capacity.

　　II. Huaxin Solution: The Core Role of Diaphragm Pumps in Photoresist Coating Systems

　　Huaxin photoresist air-cushion pumps are primarily integrated into lithography machines' photoresist supply systems, responsible for safely and precisely transferring photoresist from protective containers to the nozzles of the coating machine or the wafer centre.

　　Their core application advantages are manifested in:

　　Advantage One: Ultra-pure Materials, Safeguarding Photoresist Integrity at Source

　　Perfluorinated flow paths ensure zero-contamination transfer: All pump components in contact with photoresist are crafted from ultra-pure fluorinated materials. These exhibit minimal metal ion and particle leaching, effectively creating an ‘inert highway’ for photoresist. This guarantees chemical composition remains uncontaminated throughout the journey from storage tank to nozzle, fundamentally eliminating development defects caused by metallic contamination.

　　Advantage Two: Comprehensive Chemical Resistance, Handling All Resists with Confidence

　　The ultra-pure fluorinated material exhibits exceptional broad-spectrum chemical corrosion resistance. It reliably conveys all types of resists and solvents required for advanced processes—from KrF and ArF to EUV—ensuring the pump body remains corrosion-free and degradation-free during prolonged operation. This guarantees consistent delivery performance over extended periods.

　　Advantage Three: Smooth Delivery, Ensuring Nanometre-Level Coating Uniformity

　　Huaxin photoresist pumps deliver exceptionally smooth, pulsation-free fluid output. This stable flow is fundamental to achieving outstanding wafer-in-wafer uniformity (WIWNU) and lot-to-lot consistency. It provides a stable fluid foundation for spin-coating processes, enabling lithography systems to ‘paint’ uniform, flawless photoresist films onto wafers.

　　Advantage Four: Rugged Design for Equipment Integration and Long-Term Reliability

　　The aluminium alloy housing, supplemented by multi-layer oxygen-resistant material coating, provides robust mechanical protection for the precision internal fluorine pump body. It also enhances resistance to chemical atmosphere corrosion within equipment, ensuring long-term, maintenance-free stable operation in high-speed wafer fab environments.

　　III. Core Value Creation for Customers

　　Adopting Huaxin Photoresist Air Bladder Pumps in this core lithography process signifies:

　　Enhanced Pattern Yield: By eliminating contamination sources during transfer, it significantly reduces post-development defects such as micro-bridges and gaps, directly improving chip yield.

　　Guaranteed Process Consistency: Stable flow output ensures highly consistent photoresist thickness across every wafer and production batch, laying a solid foundation for subsequent exposure processes.

　　Reduced Total Cost of Ownership: Exceptionally long service life and high reliability minimise unplanned downtime and spare part replacement costs, safeguarding the productivity of the expensive lithography equipment.

　　Establishing Trust and Compliance: Manufactured in Class 100 and Class 10,000 cleanrooms with ISO certification, every delivered pump meets the highest standards, providing quality assurance for your cutting-edge processes.

　　Building Trust and Compliance: Class 1000 cleanroom manufacturing and ISO certification ensure every delivered pump meets the highest standards, providing quality assurance for your cutting-edge processes.

　　Lithography is the soul of semiconductor manufacturing, and photoresist coating is the window to that soul. Huaxin's photoresist diaphragm pump, with its relentless pursuit of purity and stability, precisely addresses the core challenges in photoresist delivery. It is not merely a component within lithography equipment, but a critical enabler that safeguards the success of the lithography process and determines the precision of chip patterning.
