华芯半导体风囊泵在化学品供应系统中的应用

在现代化半导体晶圆厂中，中央化学品供应系统（CDS）如同遍布全身的“血管网络”，负责将各种高纯、高腐蚀性的化学药液，安全、稳定、零污染地输送至每一台湿法工艺设备。这个系统的核心在于其“心脏”——输送泵。它的性能，直接决定了整个工艺的纯净度与可靠性。华芯半导体化学风囊泵，正是为扮演这一关键角色而生，成为高端CDS系统中值得信赖的纯净命脉。

一、 核心价值：为何CDS系统必须选择华芯风囊泵？

化学品供应系统对泵的要求极为严苛，主要集中在纯净度、耐腐蚀性、可靠性三大维度。华芯风囊泵的设计完美契合了这些核心需求：

1. 极致纯净，从源头守护药液品质

• 超纯氟材料核心： 所有接触药液的部件均采用超纯氟材料，从根本上杜绝了金属离子与颗粒污染物的析出。这对于CDS系统中输送的、用于精密清洗和蚀刻的高纯度药液至关重要，确保了药液从储罐到使用点的全程“纯洁无瑕”。

2. 全面耐腐，无畏各类苛刻化学品

• CDS系统通常需要处理从强酸（如硫酸、氢氟酸）到强碱（如氨水）、以及各类溶剂的多种化学品。华芯风囊泵的全氟材设计提供了无与伦比的化学兼容性，能够从容应对各种化学品的长时期侵蚀，保障系统长期稳定运行，大幅降低因泵体腐蚀导致的故障风险。

3. 坚固可靠，保障系统连续不间断运行

• 强化防腐蚀外壳： 泵壳采用铝合金材质并辅以多层氧材料涂覆，这一设计在保证壳体强度的同时，有效抵抗了外部化学环境可能带来的腐蚀，为泵的“内在”纯净提供了坚固的“外在”保护，延长了在复杂工况下的使用寿命。

二、 具体应用场景：华芯风囊泵在CDS系统中的角色

在华芯CDS系统中，风囊泵扮演着多个关键角色：

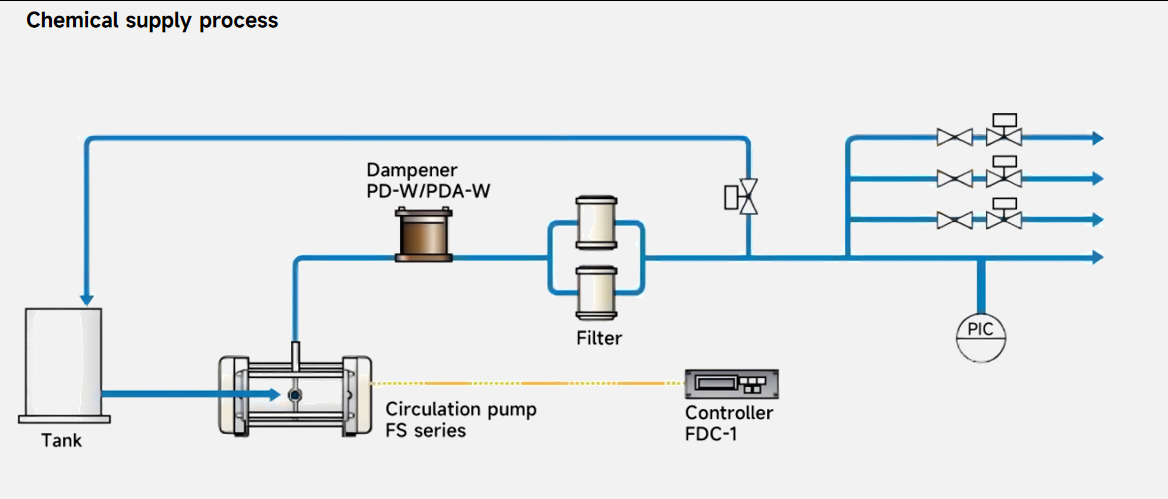

• 应用场景一：主循环与加压输送

• 角色： 作为系统的主泵，负责将化学品从中央储液罐，经过高纯管路分配系统，持续、稳定地输送到远端的各个使用点设备。

• 价值体现： 其平稳的运行特性确保了管路末端的压力和流量稳定，满足了设备对药液供给的即时需求。

• 应用场景二：过滤器循环与冲洗

• 角色： 在分支回路或过滤器一侧，用于保持药液的持续循环和过滤，防止颗粒沉降，并在系统切换或维护时进行管路冲洗。

• 价值体现： 极高的纯净度确保了在循环和冲洗过程中不会成为新的污染源，同时其耐腐蚀性保证了在频繁的化学切换中依然保持长久寿命。

• 应用场景三：高价值、高敏感药液的专线输送

• 角色： 专门用于输送对金属离子污染极其敏感的特殊化学品。

• 价值体现： 超纯氟材质在此场景下是不可替代的选择，直接关系到尖端芯片制造工艺的成败，是保障超高良率的关键一环。

三、 为客户带来的终极效益

选择华芯化学风囊泵作为您CDS系统的核心，意味着：

• 提升产品良率： 通过杜绝输送过程中的金属离子污染，直接提升芯片的电性性能和成品率。

• 降低总拥有成本（TCO）： 超长的使用寿命和卓越的可靠性，减少了备件更换频率和设备停机时间，从而降低了维护成本和生产损失。

• 保障生产安全： 强大的耐腐蚀性能从根本上降低了因泵体失效导致的化学泄漏风险，为晶圆厂的安全生产保驾护航。

• 确保供应与品质一致： 在百级、万级无尘车间生产并通过ISO认证，保证了每一台泵都具备相同的高品质和性能，支持快速交付与产能扩张。

结论：
在半导体制造日益精进的今天，任何微小的污染都可能造成巨大的损失。华芯化学风囊泵，以其对“纯净”二字的执着追求和卓越的工程技术，成为化学品供应系统（CDS）中最可靠的选择。它不仅是输送药液的泵，更是捍卫芯片良率、保障产线安全、提升运营效率的战略性组件。

　　Within modern semiconductor wafer fabrication facilities, the Central Chemical Delivery System (CDS) functions as a comprehensive ‘vascular network’, responsible for the safe, stable, and contamination-free delivery of various high-purity, highly corrosive chemical solutions to every wet process equipment. The core of this system lies in its ‘heart’ – the delivery pump. Its performance directly determines the purity and reliability of the entire process. Huaxin Semiconductor's chemical diaphragm pumps are engineered precisely for this critical role, serving as the trusted lifeline of purity within high-end CDS systems.

　　I. Core Value: Why Must CDS Systems Select Huaxin Diaphragm Pumps?

　　Chemical supply systems impose exceptionally stringent demands on pumps, primarily centred on three dimensions: purity, corrosion resistance, and reliability. Huaxin diaphragm pumps are engineered to perfectly align with these core requirements:

　　Ultimate Purity: Safeguarding Chemical Quality at the Source

　　Ultra-Pure Fluoropolymer Core: All components in contact with chemicals utilise ultra-pure fluoropolymer materials, fundamentally eliminating the leaching of metal ions and particulate contaminants. This is crucial for the high-purity chemicals transported within CDS systems—used for precision cleaning and etching—ensuring an uncompromised, pristine journey from storage tanks to point of use.

　　Comprehensive Corrosion Resistance: Withstands All Harsh Chemicals

　　CDS systems routinely handle diverse chemicals ranging from strong acids (e.g., sulphuric acid, hydrofluoric acid) to strong alkalis (e.g., ammonia water) and various solvents. Huaxin's diaphragm pumps feature a fully fluorinated material design offering unparalleled chemical compatibility. This enables them to withstand prolonged exposure to corrosive substances, ensuring long-term system stability and significantly reducing failure risks caused by pump corrosion.

　　Robust and reliable, ensuring continuous, uninterrupted system operation

　　Reinforced corrosion-resistant casing: The pump housing employs aluminium alloy construction supplemented by multi-layer oxygen-resistant material coating. This design ensures structural integrity while effectively resisting potential corrosion from external chemical environments. It provides robust external protection for the pump's ‘internal’ purity, extending service life under complex operating conditions.

　　II. Specific Application Scenarios: Role of Huaxin Air-Cushion Pumps in CDS Systems

　　Within Huaxin CDS systems, air-cushion pumps fulfil multiple critical functions:

　　Application Scenario 1: Primary Circulation and Pressurised Delivery

　　Role: Serving as the system's primary pump, it continuously and stably delivers chemicals from central storage tanks through high-purity piping distribution systems to remote point-of-use equipment.

　　Value Proposition: Its smooth operation ensures stable pressure and flow at the pipeline terminus, meeting equipment's immediate chemical supply requirements.

　　Application Scenario 2: Filter Circulation and Flushing

　　Role: Deployed on branch circuits or filter sides to maintain continuous chemical circulation and filtration, preventing particle sedimentation, and facilitating pipeline flushing during system switching or maintenance.

　　Value Proposition: Exceptional purity prevents contamination during circulation and flushing, while corrosion resistance ensures prolonged service life despite frequent chemical changes.

　　Application Scenario Three: Dedicated Conveyance of High-Value, Highly Sensitive Chemicals

　　Role: Specialised for transporting exceptional chemicals exhibiting extreme sensitivity to metal ion contamination.

　　Value Proposition: Ultra-pure fluoropolymer materials represent an irreplaceable choice in this context, directly impacting the success of cutting-edge semiconductor fabrication processes and serving as a critical safeguard for achieving ultra-high yield rates.

　　III. Ultimate Benefits for Customers

　　Selecting Huaxin Chemical's diaphragm pump as the core of your CDS system signifies:

　　Enhanced Product Yield: By eliminating metal ion contamination during transfer, it directly improves chip electrical performance and production yield.

　　Reduced Total Cost of Ownership (TCO): Exceptional longevity and reliability minimise spare part replacement frequency and equipment downtime, thereby lowering maintenance costs and production losses.

　　Ensuring Production Safety: Robust corrosion resistance fundamentally minimises chemical leakage risks from pump failure, safeguarding wafer fab operational security.

　　Guaranteeing Consistent Supply and Quality: Manufactured in Class 100 and Class 10,000 cleanrooms with ISO certification, ensuring every pump delivers identical high quality and performance, supporting rapid delivery and capacity expansion.

　　Conclusion:

　　In today's era of increasingly sophisticated semiconductor manufacturing, even the slightest contamination can inflict substantial losses. Huaxin's chemical diaphragm pump, through its unwavering commitment to purity and exceptional engineering expertise, stands as the most dependable choice within chemical delivery systems (CDS). It transcends the role of a mere chemical transfer pump, serving instead as a strategic component that safeguards chip yield rates, ensures production line security, and enhances operational efficiency.
