单晶片清洗蚀刻用风囊泵

在先进半导体制造中，单晶片清洗蚀刻机代表着最高标准的工艺控制与处理精度。它们对每一片晶圆进行独立、精密的处理，其性能直接决定了尖端芯片的良率。在这一核心设备内部，化学药液的输送系统如同其“循环系统”，必须实现绝对的纯净、精准的流量与极致的可靠性。华芯化学风囊泵，正是这一关键系统的理想核心，为单晶片工艺提供无可挑剔的纯净动力。

一、 核心挑战：单晶片设备对药液输送的极致要求

1. 纳米级纯净度： 用于前道关键工艺的清洗液（如SPM、SC1、SC2）和蚀刻液（如DHF、BHF）必须杜绝任何金属离子与颗粒污染，否则将直接导致器件电性失效。

2. 广泛的化学兼容性： 单台设备可能需依次或循环处理多种性质迥异（强氧化性、强酸性、强碱性）的化学品，泵体材料必须全面耐腐蚀。

3. 精准与稳定的流量： 药液的流量与压力稳定性直接影响清洗和蚀刻的均匀性、速率以及晶圆内均匀性（WIWNU）。

4. 高可靠性与长寿命： 作为量产设备的核心部件，必须保证极低的故障率与维护频率，以提升设备综合效率（OEE）。

二、 华芯解决方案：风囊泵在单晶片清洗蚀刻机中的核心角色

华芯化学风囊泵被高度集成于设备内部的药液分配单元中，承担着从中央供应系统或内部暂存罐向处理腔室精确输送各类高纯化学品的核心任务。

其核心应用价值体现在：

• 价值一：超纯材质，构筑污染防线

• 全氟流道，保障药液本征特性： 泵体与药液接触部分全部由超纯氟材料制成，确保了极低的金属离子与颗粒析出。这使得华芯风囊泵成为输送SPM（硫酸-双氧水混合液）、DHF（稀释氢氟酸） 等关键药液的绝佳选择，从源头切断污染链，守护晶圆表面态，为制造高性能晶体管提供基础保障。

• 价值二：全面耐腐，胜任复杂化学环境

• 从酸性的氢氟酸到碱性的氨水，氟材料几乎能耐受单晶片工艺中所有的苛刻化学品。这种卓越的化学兼容性确保了泵在应对配方复杂、频繁切换的药液时，内部流道不会被腐蚀、溶胀或产生降解产物，保证了长期运行的稳定性和工艺结果的一致性。

• 价值三：平稳输送，实现卓越工艺均匀性

• 在清洗环节，它确保了药液能均匀地覆盖晶圆表面，实现一致且高效的清洗效果。

• 在蚀刻环节，它保障了蚀刻速率的稳定，从而精确控制蚀刻厚度，获得卓越的晶圆内均匀性（WIWNU）。

• 华芯风囊泵能提供持续稳定的无脉冲流量输出。这种稳定性对于单晶片工艺至关重要：

• 价值四：坚固耐用，提升设备综合效能

• 采用铝合金壳体并辅以多层氧材料涂覆，这一设计使泵体既能承受设备内部的机械振动，又能抵抗可能出现的化学气氛腐蚀。结合其长寿命特性，显著降低了设备的平均修复时间（MTTR），提升了平均无故障时间（MTBF），为晶圆厂的大规模连续生产提供了有力保障。

三、 为客户创造的核心价值

在单晶片清洗蚀刻设备中集成华芯化学风囊泵，意味着：

• 直接提升产品良率： 通过杜绝输送环节的污染，显著减少表面缺陷和电性失效，直接提升芯片的最终良率。

• 保障工艺精度与一致性： 稳定的流量输出是实现纳米级工艺控制的基础，确保了跨晶圆、跨批次的卓越重复性。

• 降低总拥有成本： 超长的使用寿命和极高的可靠性，减少了备件库存与计划外停机，最大化设备产能与投资回报。

建立品质信任： 千级无尘车间生产和ISO认证，确保了每一台泵都满足半导体级品质要求，为您的尖端制程保驾护航。
单晶片处理是半导体制造迈向更先进节点的必然选择。华芯化学风囊泵，以其对纯净、耐腐与稳定的极致追求，完美契合了单晶片清洗蚀刻机对药液输送系统的所有苛求。它不仅是设备中的一个高性能部件，更是保障每一次清洗、每一回蚀刻都完美无瑕的精密卫士。

　　In advanced semiconductor manufacturing, single-wafer cleaning and etching machines represent the pinnacle of process control and handling precision. They perform independent, meticulous processing on each individual wafer, with their performance directly determining the yield of cutting-edge chips. Within this core equipment, the chemical solution delivery system functions as its circulatory system, demanding absolute purity, precise flow control, and ultimate reliability. Huaxin Chemical's air-operated diaphragm pumps serve as the ideal core for this critical system, delivering impeccably pure power for single-wafer processes.

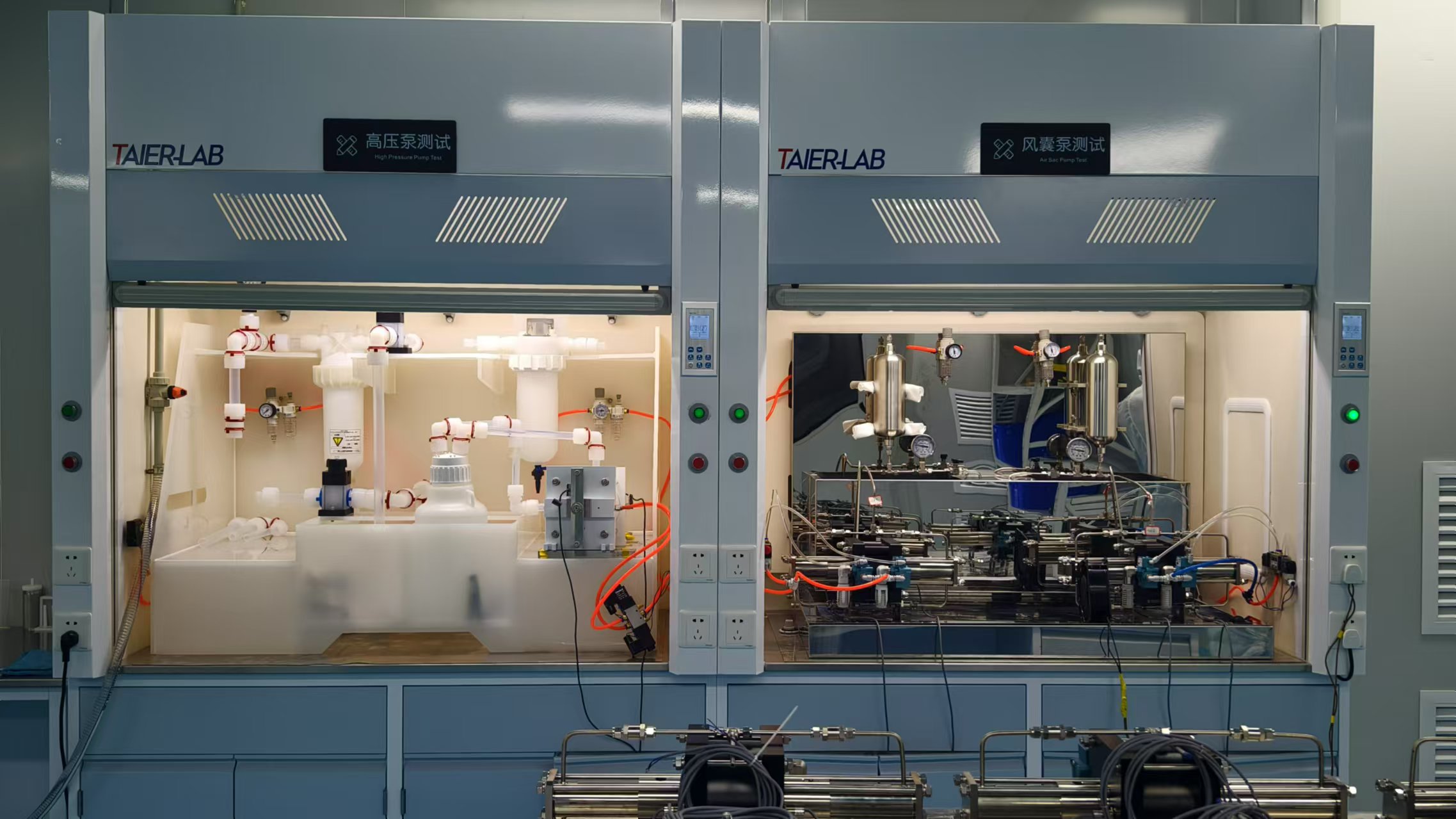

　　Single-wafer cleaning and etching air-operated diaphragm pump.jpg

　　I. Core Challenge: Single-Wafer Equipment's Demanding Requirements for Chemical Fluid Delivery

　　Nanometre-level Purity: Cleaning solutions (e.g., SPM, SC1, SC2) and etching solutions (e.g., DHF, BHF) used in critical front-end processes must be entirely free from metal ion and particulate contamination, as any presence would directly cause device electrical failure.

　　Extensive Chemical Compatibility: A single unit may sequentially or cyclically process diverse chemicals (strongly oxidative, acidic, or alkaline), demanding comprehensive corrosion resistance in pump materials.

　　Precise and Stable Flow: Fluid flow and pressure stability directly impact cleaning/etching uniformity, rate, and wafer-within-wafer uniformity (WIWNU).

　　High reliability and extended service life: As a core component in mass production equipment, it must ensure extremely low failure rates and minimal maintenance frequency to enhance Overall Equipment Effectiveness (OEE).

　　II. Huaxin Solution: The Core Role of Diaphragm Pumps in Single-Wafer Cleaning and Etching Equipment

　　Huaxin chemical diaphragm pumps are highly integrated within the equipment's chemical distribution unit, undertaking the core task of precisely conveying various high-purity chemicals from the central supply system or internal buffer tanks to the processing chamber.

　　Their core application value manifests in:

　　Value One: Ultra-pure Materials, Establishing a Contamination Barrier

　　Perfluorinated flow paths preserve the intrinsic properties of chemicals: All pump components in contact with chemicals are crafted from ultra-pure fluorinated materials, guaranteeing minimal metal ion and particle leaching. This makes Huaxin diaphragm pumps the optimal choice for handling critical solutions such as SPM (sulphuric acid-hydrogen peroxide mixture) and DHF (diluted hydrofluoric acid). By severing contamination chains at source, they safeguard wafer surface integrity, providing foundational assurance for manufacturing high-performance transistors.

　　Value 2: Comprehensive Corrosion Resistance for Demanding Chemical Environments

　　From acidic hydrofluoric acid to alkaline ammonia solutions, fluoropolymer materials withstand virtually all harsh chemicals encountered in single-wafer processes. This exceptional chemical compatibility ensures internal flow paths remain free from corrosion, swelling, or degradation byproducts when handling complex, frequently-switched formulations. This guarantees long-term operational stability and consistent process outcomes.

　　Value Three: Smooth Delivery for Exceptional Process Uniformity

　　During cleaning stages, it ensures uniform coverage of the wafer surface, delivering consistent and efficient cleaning results.

　　During etching, it maintains stable etch rates, enabling precise control of etch depth and achieving outstanding wafer-in-wafer uniformity (WIWNU).

　　Huaxin diaphragm pumps deliver continuous, stable, pulsation-free flow output. This stability is critical for single-wafer processes:

　　Value 4: Rugged Durability Enhancing Overall Equipment Effectiveness

　　Featuring an aluminium alloy housing with multi-layer oxygen-resistant coating, this design enables the pump to withstand both internal mechanical vibrations and potential chemical atmosphere corrosion. Combined with its extended service life, this significantly reduces Mean Time to Repair (MTTR) while increasing Mean Time Between Failures (MTBF), providing robust assurance for wafer fabs' large-scale continuous production.

　　III. Core Value Creation for Customers

　　Integrating Huaxin Chemical's diaphragm pumps into single-wafer cleaning and etching equipment delivers:

　　Directly Enhanced Product Yield: By eliminating contamination during fluid transfer, it markedly reduces surface defects and electrical failures, directly improving final chip yield.

　　Guaranteed Process Precision and Consistency: Stable flow output forms the foundation for nanoscale process control, ensuring exceptional repeatability across wafers and batches.

　　Reduced Total Cost of Ownership: Exceptionally long service life and outstanding reliability minimise spare parts inventory and unplanned downtime, maximising equipment productivity and return on investment.

　　Building Quality Trust: Manufactured in Class 1000 cleanrooms and ISO-certified, every pump meets semiconductor-grade quality standards, safeguarding your cutting-edge processes.

　　Single-wafer processing represents an inevitable progression towards more advanced semiconductor nodes. Huaxin Chemical's diaphragm pumps, with their uncompromising pursuit of purity, corrosion resistance and stability, perfectly align with the exacting demands of chemical delivery systems in single-wafer cleaning and etching equipment. They are not merely high-performance components within the machinery, but precision guardians ensuring flawless execution in every cleaning cycle and etching process.
